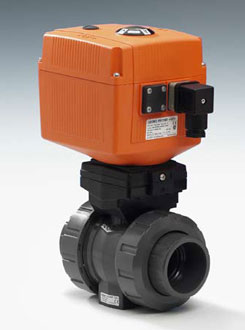

【 GF Electric Ball Valve】130-135 Electric Ball Valve
The 130, 131, 132, 133, 134 and 135 ball valves are composed of a type 546 ball valve (d16DN10 to d110DN100) and an electric actuator EA21 (DN10-DN50) or EA31 (DN65-DN100). The 130-135 ball valve features an upgradeable modular design to meet the requirements of special applications.

Advantage:
Feedback 4-20mA by integrating accessories with different functions into the actuator or multi-function module
Action time control
Motor current control
Cycle cycle control
Cycle time extension
90° and 180° angle position control
Integrated manual emergency handle

product:
² Type 130: Type 546 PVC -U , PVC-C , ABS (ISO) with EA21 (DN10-DN50) / EA31 (DN65-DN100)
² Type 131 : Type 546 PP -H with EA21 (DN10-DN50) / EA31 (DN65-DN100)
² Type 132: Type 546 PVDF with EA21 (DN10-DN50) (ISO, ASTM)
² Type 133 : Type 546 PVC -U and PVC-C (ASTM) with EA21 (DN10-DN50) / EA31 (DN65-DN100)
² Type 134 : Type 546 PVC -U , ABS (BS) with EA21 (DN10-DN50) / EA31 (DN65-DN100)
² Type 135 : Type 546 PVC -U , PVC-C , PP-H and PVDF (JIS) with EA21 (DN10-DN50) / EA31 (DN65-DN100)

EA21	EA31
Rated Torque (Mdn): 10 Nm (7.4 lb. ft) Maximum Torque: 20 Nm (15 lb. ft.) Action Time Mdn/90°: 5 s Action Cycle Time Ratio: 100 % Test Cycles (20°C Mdn ): 250 000 Degree of protection: IP 65/67 according to EN 60529 Voltage: 100-230 V～ and 24 V=/～	Rated Torque (Mdn): 60 Nm (44 lb. ft) Maximum Torque: 120 Nm (88.5 lb. ft.) Action Time Mdn/90°: 15 s Action Cycle Time Ratio: 50 % Test Cycles (20° C Mdn ): 100 000 Degree of protection: IP 65/67 according to EN 60529 Voltage: 100-230 V～ and 24 V=/～
